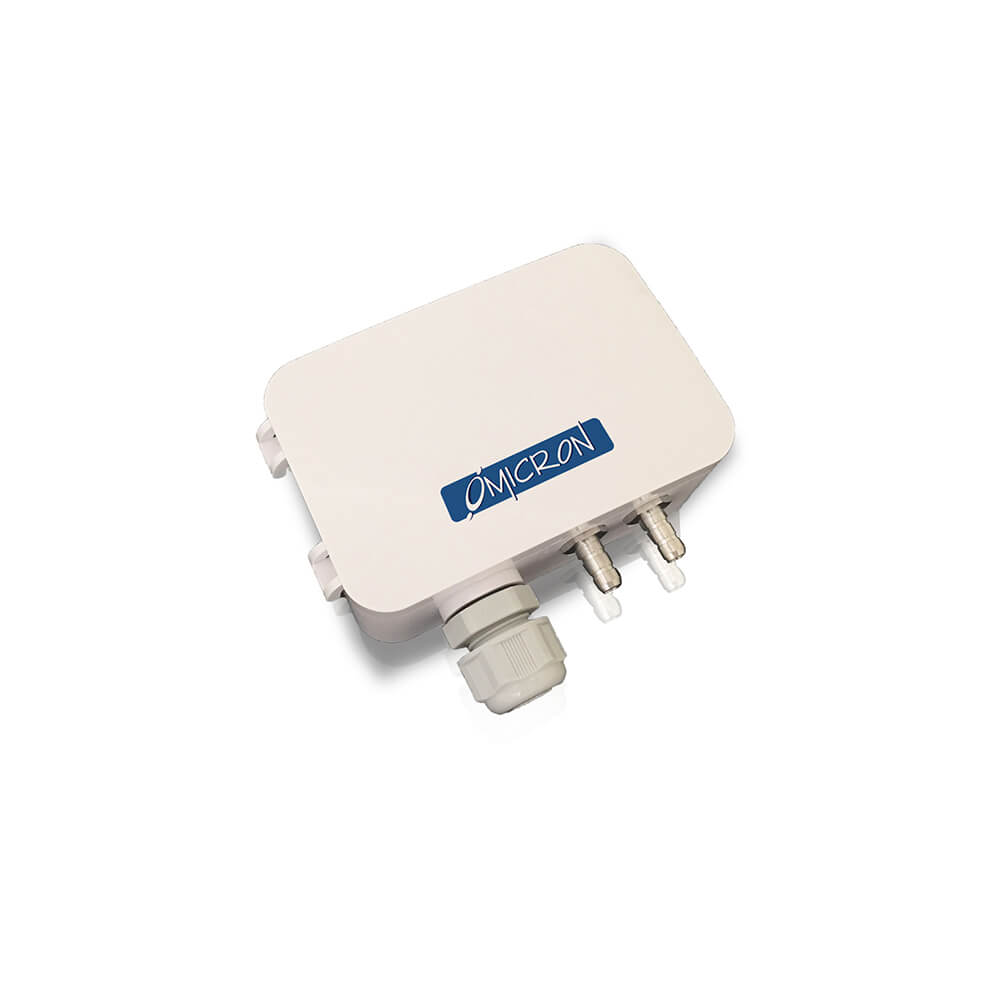

S323: IP65 Differential Pressure Transmitter
|
Additional information
| Maximum Pressure | : Ranges ≤ 5 PSI (35 kPa) = 15 PSI (100 kPa) Max |
|---|---|
| Storage | : Ranges > 5 PSI (35 kPa) = 30 PSI (200 kPa) Max |
| Media Compatibility | : Air and compatible non combustible, |
| Temperature Ranges Compensated | : 15° to 120°F (-10° to 50°C) |
| Temperature Ranges Operating | : -10° to 155°F (-25° to 70°C) |
| Thermal Effect | : +/- 0.028% FS/°F (+/- 0.050%/° C) |
| Stability | : +/- 0.25% FS/year |
| Output Signal | : 4-20 mA, 2 wire or 0-10V |
| Loop Resistance | : 250 Ω @ 24 VDC |
| Power Supply | : 12-30 VDC |
| Enclosure Rating | : IP 65 |
| Electrical Connections | : screw terminals |
| Electrical Entry | : PG7 cable gland |
| Process Connection | : Barbed fittings for 3/16” flexible tubing |
| Agency Approvals | : CE |
