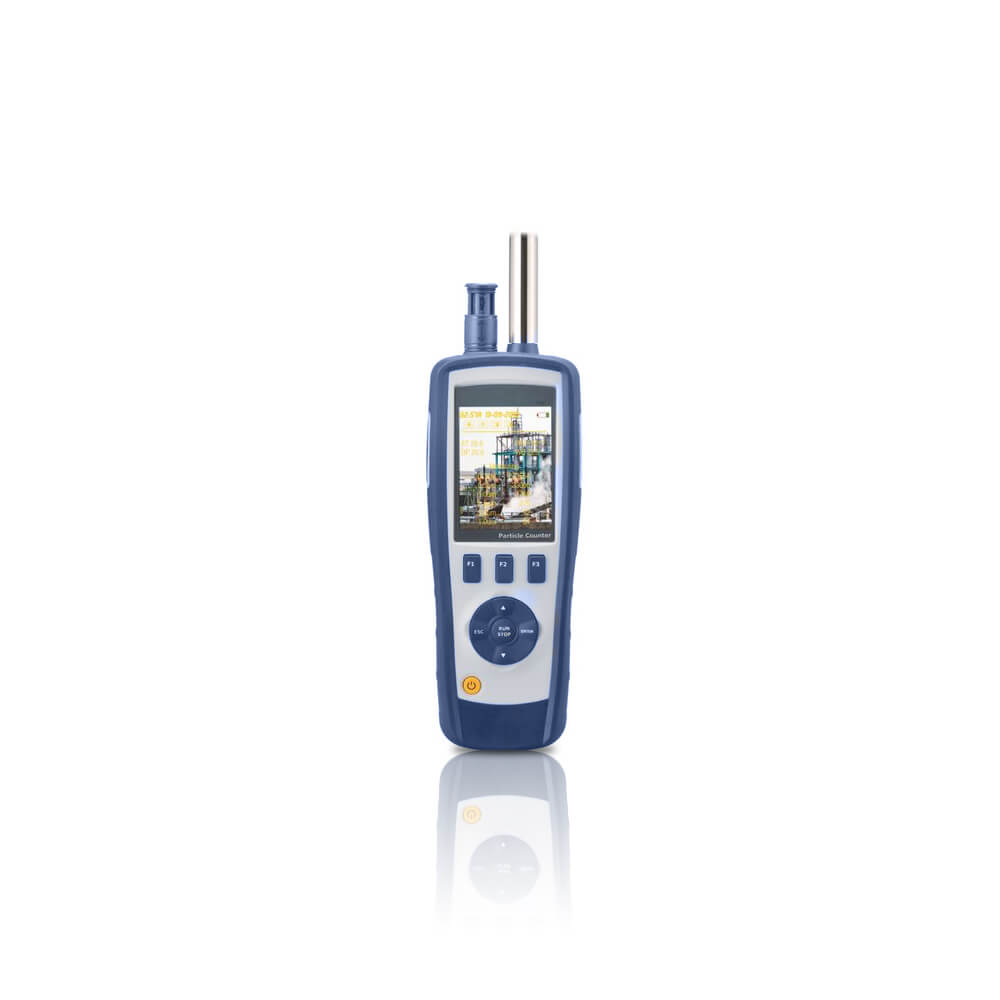

PC988 : Particle Counter
|
||||||
Description
Description :
988 is 4 in 1 Particle Counter with 2.8″ color TFT LCD display & a microSD memory card for capturing images(JPEG) or video(3GP) for viewing on your PC. This Particle counter ARW providing fast, easy and accurate readings for particle counter, air temperature & relative humidity, most surface temperature measurements. It is the first combination of these measurements in global, would be the best instrument for environment protection and energy save. The dewpoint temperature measurement will be very visiable for wet and dry proof. It is a good hand for industrial measurements and data analyzing, the real scene
and time can be displayed on color TFT LCD.
Features :
 |
2.8″ TFT 320×240 pixels Color LCD display |
|
Images(JPEG) & Video(3GP) |
|
Simultaneously measure and display 6 channel of particle sizes, measure particle size down to 0.3, 0.5, 1.0, 2.5, 5.0, 10 pm |
|
Easy and Fast To use |
|
Air temperature and humidity, Dewpoint & Wet bulb temperature |
|
Max, Min, DIF, AVG record, Date/time setup controls, High and low alarm |
|
Adjustable emissivity & Trigger lock |
|
MicroSD (MAX use 8GB) memory card, Bluetooth /USB interface |
|
Auto Power Off |
|
Selectable sample time, count data, programmable delay |
|
Store 5000 records of date, time, counts, relative humidity, temperature, sample volumes, alarms and location label |
|
Language selection English, Chinese, French, German, Spaish |
Additional information
| Particle Counter | — |
|---|---|
| Channel | : 0.3, 0.5, 1.0,2.5, 5.0, 10µm |
| Flow Rate | : 0.1f1³(2.83L/min) controlled by internal pump |
| Count Modes | : Totalize, Concentration, Audio |
| Coincidence Loss | : 5%, 2000000 particles per ft³ |
| Air Temperature Measure | — |
| Air Temp Range | : 0 to 50°C/32 to 122°F; Basic Accuracy:±0.5°C/1°F |
| Humidity Range | : 0 to 100%RH; Basic Accuracy:±2.5%RH(20%–80%RH) |
| Dew Point Temp. Range | : -30.-100°C/ -22-199°F |
| Wet Bulb Temp. Range | : 0-80°C/ 32-176°F |
