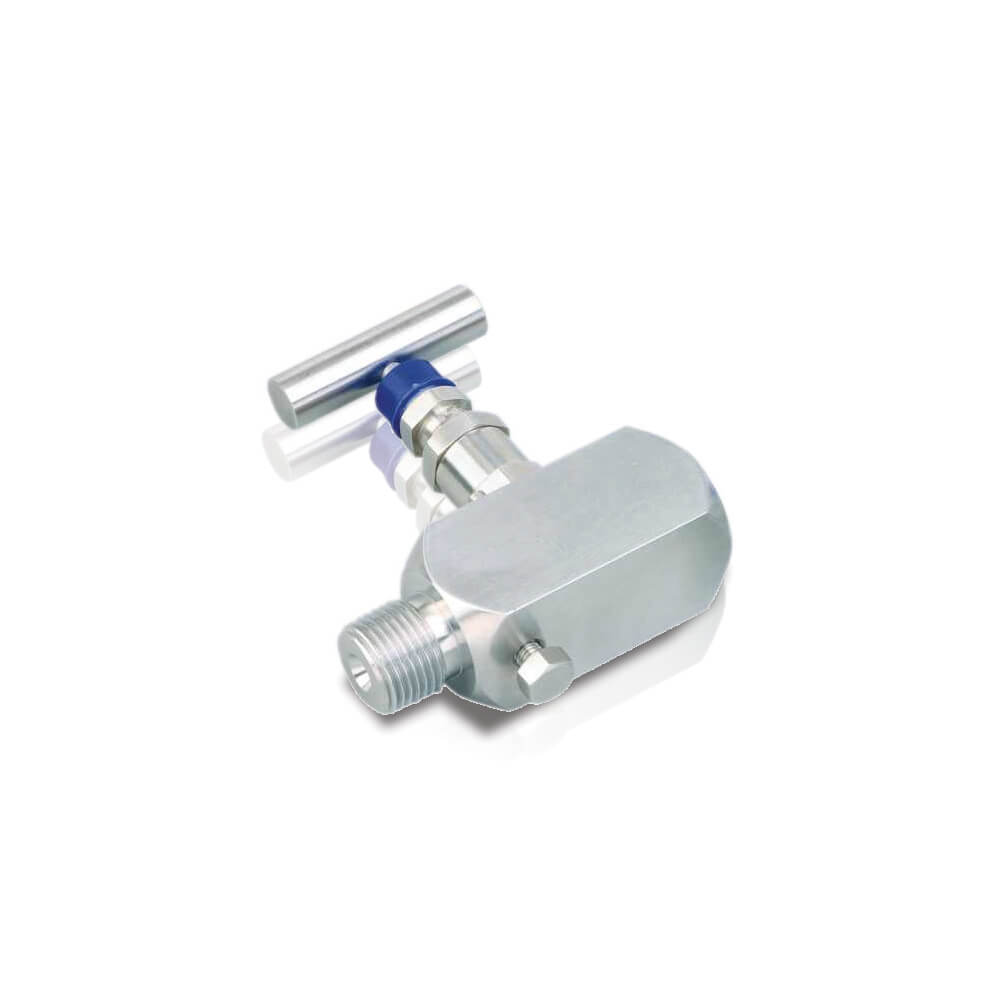

NV4 : Block & Bleed Valve
|
|||||||||||||||||||||
Description
Description :
NV4 type gauge is a block and bleed needle pattern gauge valve with specially designed integral bleed.Ideal for use on application requiring bleeding or venting of media.Self centering needle non-rotating,on the valve seat.The conical metal tip (stem type CT) press fitted ensures perfect alignment for positive bubble tight shut-off.Standard connection are male inlet and female outlet or female inlet and female outlet from 1/4” to 3/4”
Applications :
 |
Installation of instrument and gauge |
|
Isolation of Instrument |
|
Venting of Instrument. |
|
Liquid and vapor service |
Additional information
| Pressure | : 400 bar |
|---|---|
| Max Temp. | : 240°C |
| Material | : Stainless Steel |
| Stem | : (CT) Conical tip press fitted hard chrome plated. |
| Gland Packing | : PTFE (Grafoil used for temperature above 240°C to 550°C) |
| Safety Feature | : Back seating for Preventing stem blowout |
