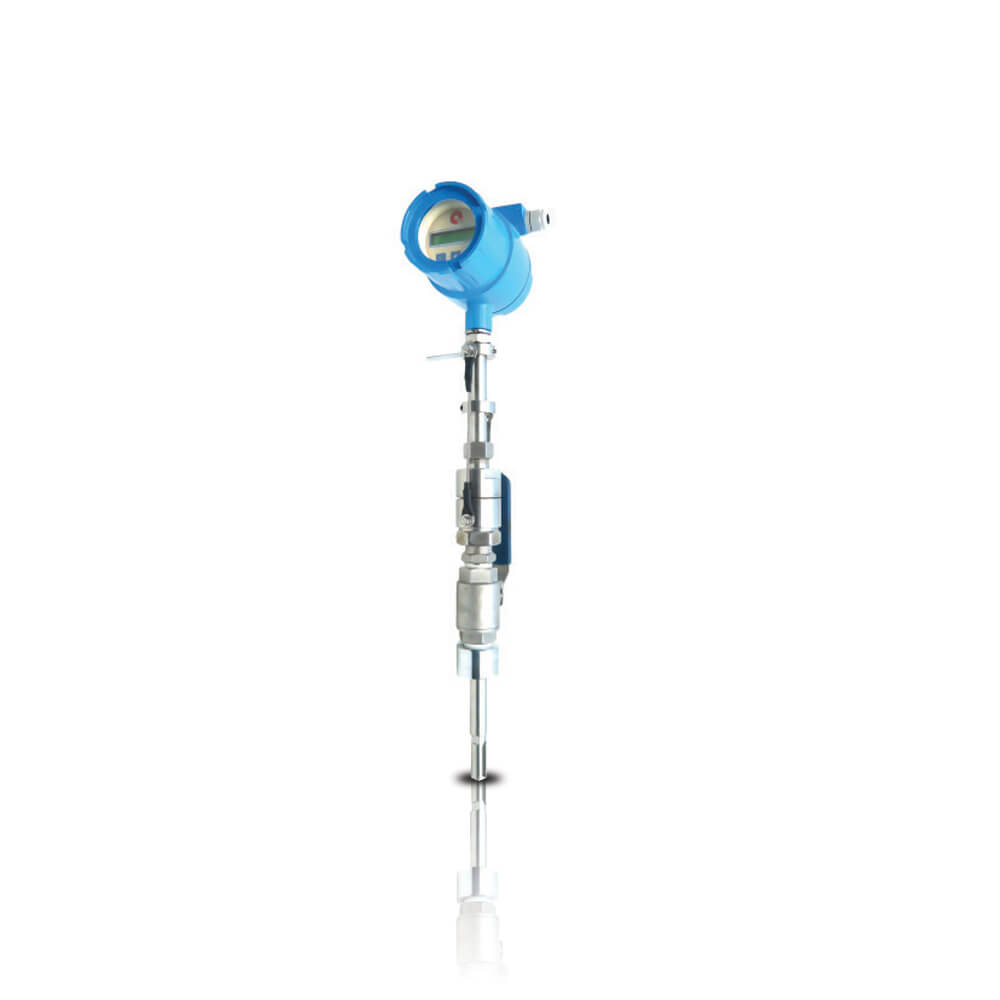

F6700 : Electromagnetic Flow Transmitter (Insertion Type)
|
Description
Special Features :
| Intelligent Electromagnetic Flow Meter with Optional HART | |
| High Accuracy with High Repeatability | |
| Wide Measurement Range, upto 10:1 | |
| No Moving Parts, Reducing the Maintenance | |
| Inbuilt LCD Display with Setting Keypad | |
| Optionally available for High Pressure Applications |
Applications :
F6700 Electromagnetic Flow Meter with new engineering innovations, has all the
desired features to ever changing needs of industries like Paper, Cement, Textile, Power, Pharmaceutical, Process, Dairy and Water Management. A perfect answer to almost any application, regardless of size (From 250 MM to 3000MM), F6700 withstands the rigors of industrial demands.
Advantages :
| Proven High Reliability with More than 15 years of Experience | |
| Low Cost of Installation | |
| Pre Calibrated at Factory, No Field Calibration Required | |
| Very Low Pressure loss results in considerable energy savings | |
| Zero Maintenance as there are no moving or rotating parts | |
| True Volumetric Output is available from the Flow Indicator |
Additional information
| Media | : Liquids |
|---|---|
| Line Size | : 250MM to 3000MM |
| Accuracy | : ±0.5% For Liquids |
| Repeatability | : ±0.2% For Liquids |
| Output | : 4 – 20mA, 2 Wire (Optional with HART) |
| Power Supply | : 12VDC / 24VDC / Li-on 3.6V 14Ah / 220V AC |
| Alarms | : Optional |
| Password Protection | : Yes |
| Media Temperature | : – 40°C to 250°C / Optional -40°C to 350°C |
| Ambient Temp. | : – 40°C to 85°C |
| Maximum Pressure | : 25 Bar |
| Sensor MOC | : AISI 316LSS (Other Materials Optional) |
| Protection Grade | : IP65 |
| Display | : In Built LCD Display |
