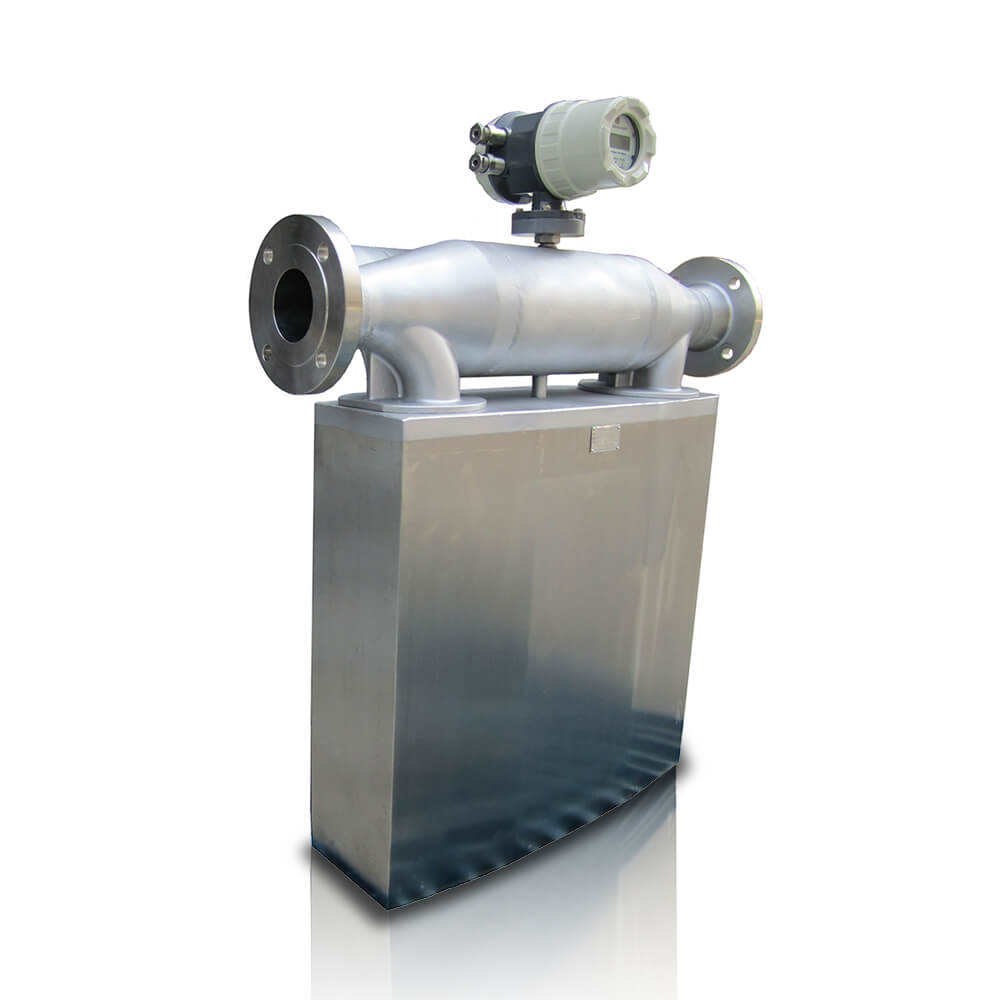

F5100 : High Precision Coriolis Mass Flowmeter
|
||||||
Description
Special Features :
 |
Apply high stability and patented technology platinum RTD sensor |
|
Uses proprietary technology “balanced structure package”, medium temperature self-compensation. |
|
Proprietary algorithms; can achieve high linearity, high repeatability, high precision. |
|
Range ratio 1000:1 also can be expanded according to user requirements. |
|
Enables measurement of small flow large diameter, the minimum flow rate can be measured as low as zero, resolution0.001m/s. |
|
No moving parts, vibration can be neglected. |
|
Straight pipe less demanding 1-2D |
|
Unrelated with the medium temperature and pressure. |
|
Proprietary high-temperature method, medium temperature up to +510. |
|
Humidity algorithm used to achieve high precision measurement |
|
Flow signal enters 12-point dynamic correction, built-in 10-point amendment. |
|
Dynamic on-line correction current / voltage output. |
|
On-line continuous flow, easy handling and maintenance |
Additional information
| Measuring range | : 0-120Nm/s (20C,101.33Kpa) |
|---|---|
| Accuracy | : ± 0.1% of reading ± 0.5% full scale |
| Range ratio | : usually 100:1 (depending on the calibration of flow range) |
| Diameter range | : 6000mm |
| Application scope | suitable for all types of single or mixed gases, containing dust, sand, moisture and various corrosive gases. |
| Environmental temperature range | -40 – +85 (no display); -30 – +70 (showing); humidity |
| Medium temperature range | : -40 – +100; -40 – +200; -40 – +450; -40 – +510 |
| Sensor Material | : 316 stainless steel, Hastelloy, Titanium |
| Probe rod material (protection cover) | : 316 stainless steel (standard), Hastelloy |
| Analog Output | : Flow:4-20mADC,temperature:4-20mADC,maximum |
| Communication | : Serial output RS232/RS485 |
| Power supply | : 24VDC/600mA |
| Alarm | : 1-2-way relay output, 5A/220V, 5A/30VDC, type settings |
| Large-screen LCD Display | : 7 instantaneous flow, 8 cumulative flow rate |
| Process Pressure | : 1.6Mpa (maximum 20MPa) |
| Installation Process Type | : Plug-in (card sets, card sets + ball valve, flange |
| Protection class | : IP66 |
