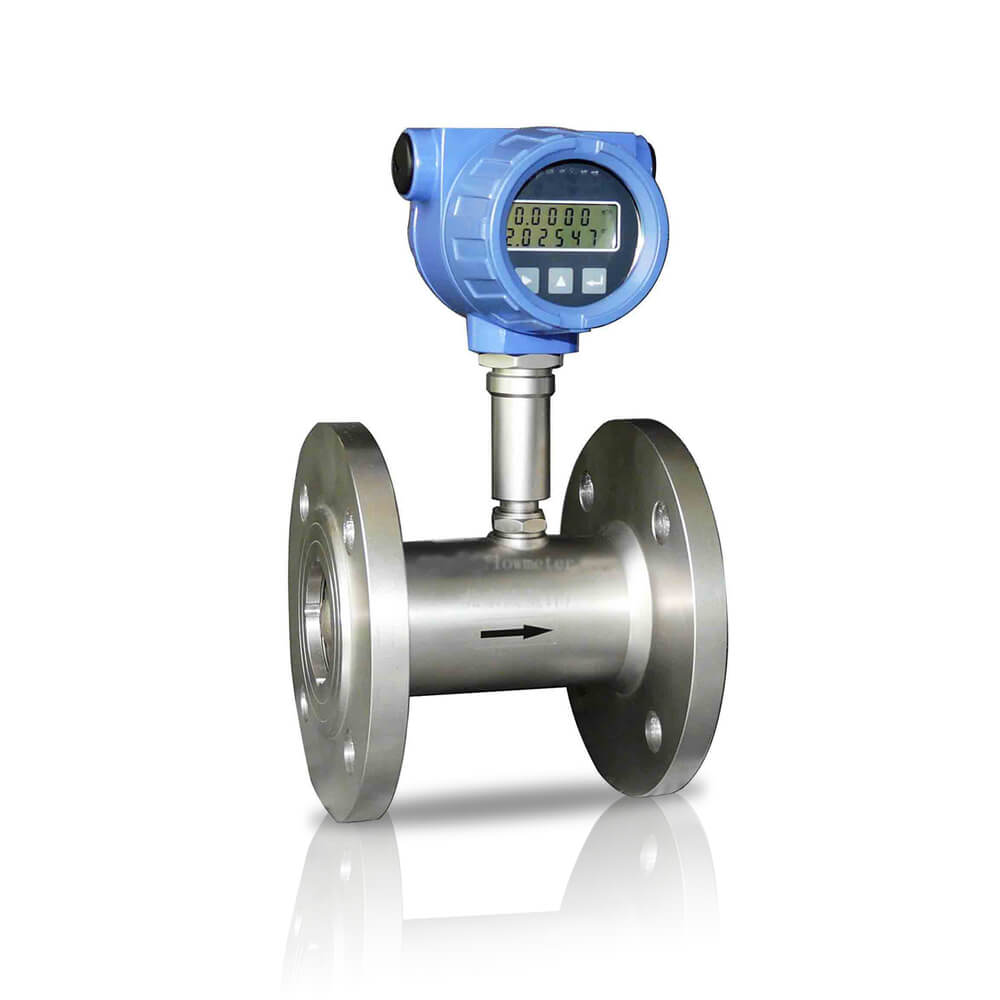

F4900 : Liquid Turbine Flow Meter
|
Description
Application
| Agricultural | |
| Water | |
| Diesel | |
| Gasoline | |
| Low Viscosity Petroleum |
Specifications
| Application range | : | Liquid: water; diesel; gasoline | |
| (1) Without Impurity | |||
| (2) Low viscosity | |||
| Measured Value | |||
| Primary measured value | : | Flow Rate | |
| Secondary measured value | : | Volume flow | |
| Design | |||
| Modular construction | : | The measurement system consists of a flow sensor and a signal converter. It is available as compact and as separate version. |
|
| Compact version converter | : | N Type: Pulse output without local display | |
| A Type: 4-20mA Output without local display B Type: Local Display; Lithium Battery Power; No Output |
|||
| C Type: Local Display; 24V DC Power; 4-2OmA Output; Optional Function: (1) Backup Power Supply: Lithium Battery (2) Modbus RS485 (3) Pulse Output |
|||
| Connection | : | Thread: DN4-DN50a Flange: DN15-DN200 (DIN, ANSI, JIS) Wafer: DN15-DN100 |
|
| Measurement Ratio | : | Standard —10:1; Optional: 20:1 | |
